these are some shots of a local tractor that was brought in for repairs/updates/custom work
chassis will be stripped and re-painted over the winter
 |
 |
 |
 |
 |
 |

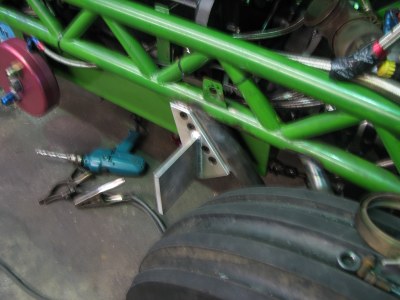

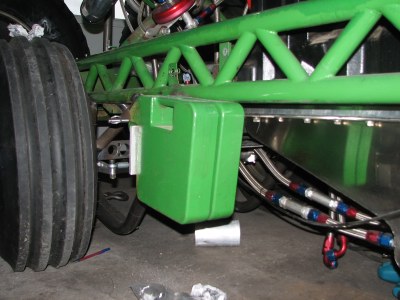

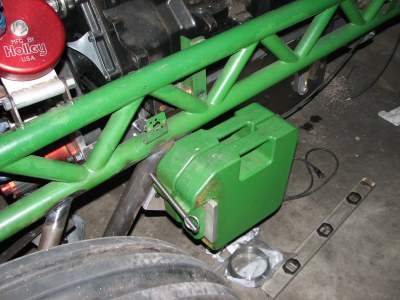

addition of weight racks behind front wheels
 |
 |

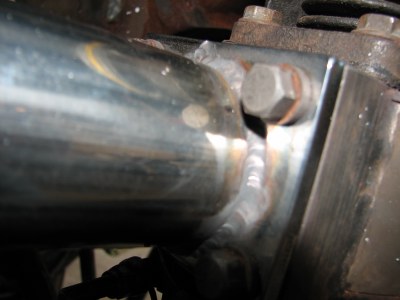

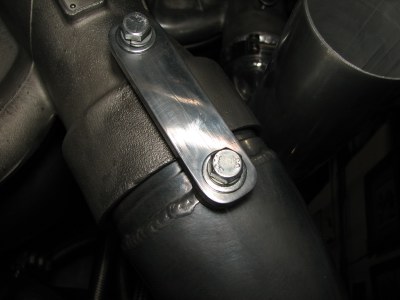

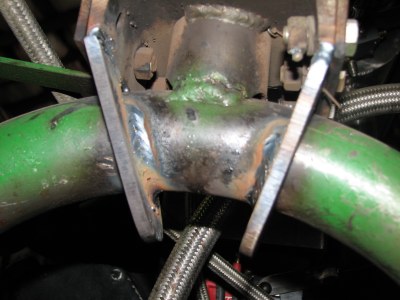

before - cracked welds @ turbo mount
|
after
|
 |
 |
before - cracked on front side also
|
after
|
 |
 |
before
|
after
|

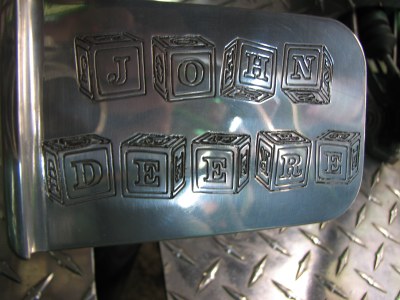

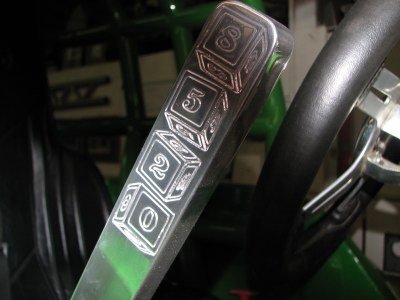

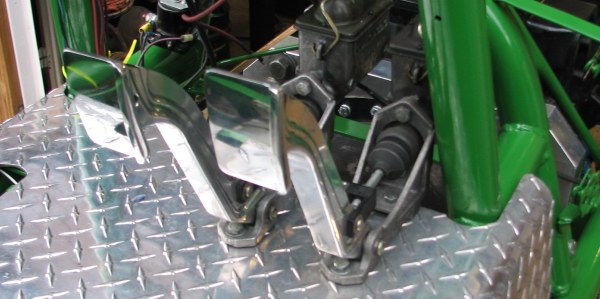

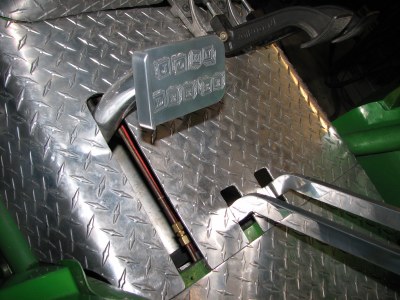

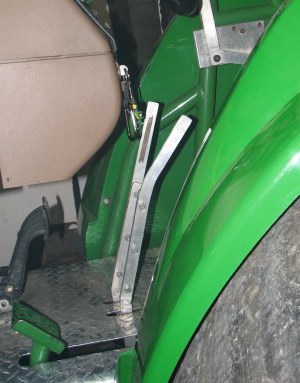

generic clutch pedal and shifters replaced with custom engraved and polished billet parts
 |
 |
 |
 |
before - bent axle
|
after - solid axle with required skid bars
|
 |
 |
before
|

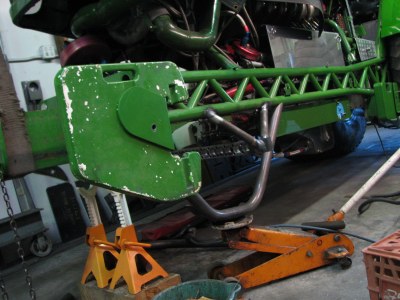

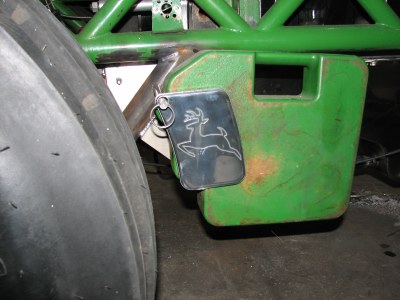

after - new over/under weight rack
|
we noticed something when we took the plumbing off the turbos
kinda rough inside
Ok, REALLY rough inside
Stalactites??? Those little bb's will not pass thru turbos (or engines) without causing major damage when they come off
this is good for airflow. NOT
O_o wow, some new kinda new swirl technique? Pinholes are to keep from building too much boost?
amazing

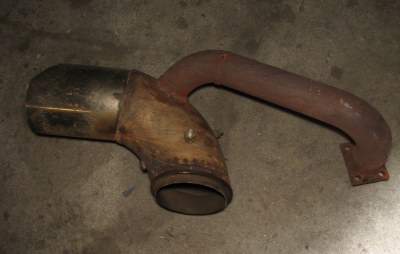

this plumbing is scrap metal - looks ok from the outside, but it's the inside that matters
The configuration of this 2 into one wye is all wrong. Sure it gets air to the right place,
but it has the airflow from each turbo directed toward each other, with no way to separate or divide the air.
What happens if one charger is not putting out the exact same pressure as the other?
Air flows exactly like water. This is the same effect as pointing two garden hoses toward each other, until the two streams collide head on.
Now, picture angling the two garden hoses away from each other, until the two streams
meet at a distance and combine into one large stream with even more velocity....
O-ring seal provides a better transition from the intake tubes into the turbo housing

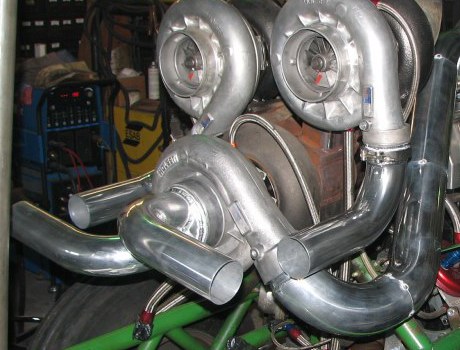

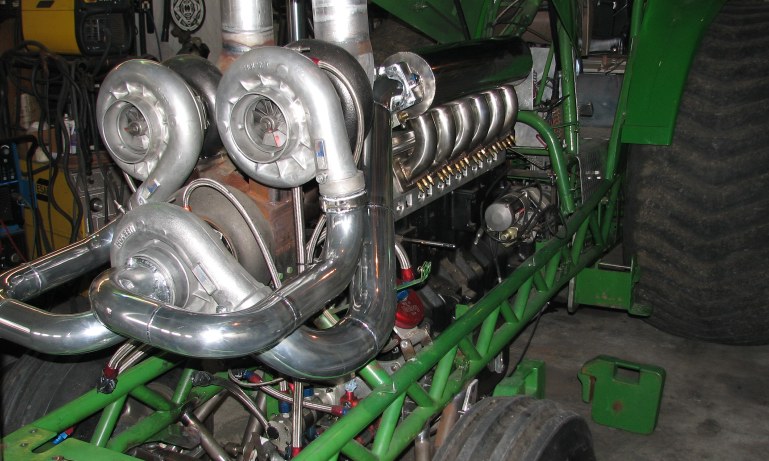

The plumbing from the two top chargers will be made equal lengths. This is very critical for even, consistent airflow.
 |
 |

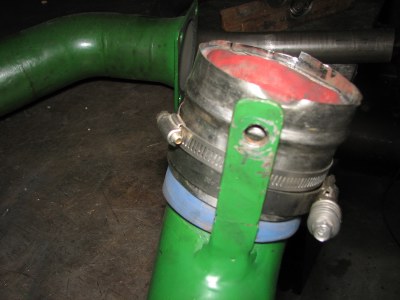

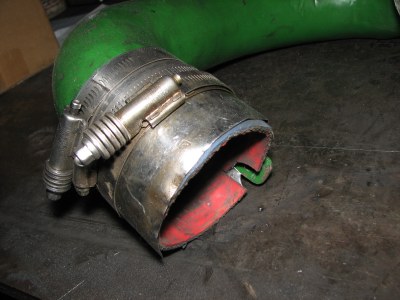

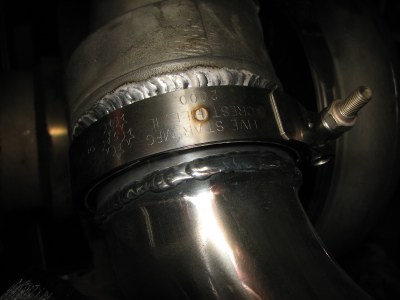

ugly silicone connectors and hose clamps replaced with V-bands welded to the housings
 |
 |
o-ring seal is neat and easy to get on/off
 |
 |
before
|
after
|
exhaust stacks ready for chrome
 |
 |
before
|
after
|
waste gate discharge tube replaced with stainless steel
 |
 |
before
|
after
|

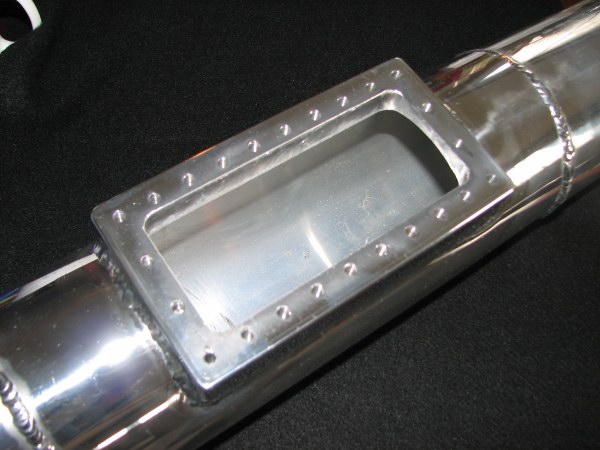

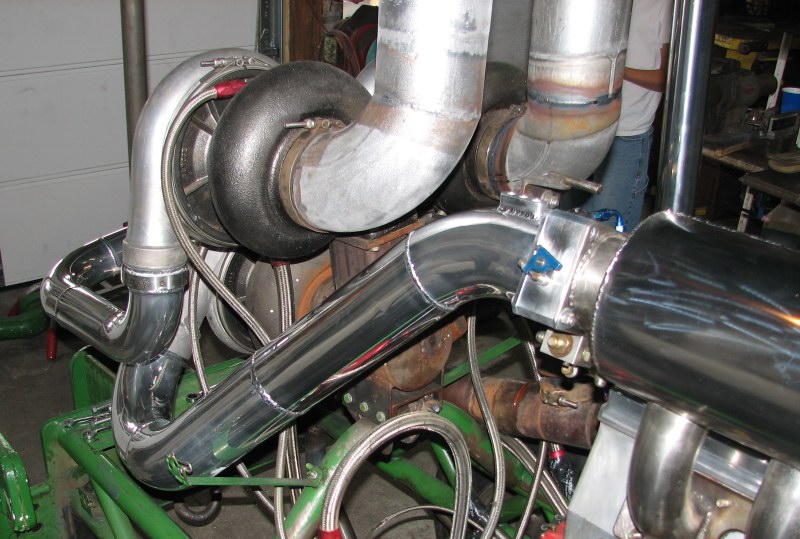

billet burst panel contoured to fit 4" aluminum tubing
welded in place and cut inside to blend
polished and assembled
several more pics...
(will open in new window)
photo gallery #1 12/07
photo gallery #2 3/08
More examples of custom work
